Model Number: L80RHMSDI
New Product!
Featured Product!
Summary
8.0" x 2 Monitors TFT LCD Colour Monitor with LED Back light, Metal Cased in 19” Rack Mounting. Inputs of SDI In/Out, HDMI x 2, DVI, VGA, Composite Video In/Out BNC sockets, S-Video. (Y/C), Audio In/Out and via speaker, USB for Media and Service use. I/R remote control.
Detailed Description
The L80RHMSDI offers 2 monitors of 8.0” in one rugged 19” rack mounting 5U High. With LED backlight, Digital Panel and TFT active matrix. It offers a superb sharp and high contrast display. Individual On/Off and Full OSD with Hot keys. Inputs of SDI, HDMI, DVI, VGA, Composite Video BNC. S-Video (Y/C), Audio In/Out and via Speaker. With universal application potential it is ideal for surveillance systems, monitoring systems and multimedia video applications.
Main Features
- Resolution: 800 x 600.
- Picture Ratio: 4:3.
- Brightness: 250 cd/m2.
- Contrast Ratio: 500:1.
- Inputs: SDI, HDMI, DVI, VGA, Composite Video BNC, S-Video (Y/C), Audio, USB for Media and Service use.
- Outputs: SDI, Audio via speaker.
- Full OSD and Hot keys
- Single power connection.
- Anti-blur/image auto.
- Rack Tilt 15/15degs.
- Smart cabinet with Rack Tilt 30/30° finished in Black.
- 3D Comb filter and De-Interlace function.
Specifications
- Active area: 162 x 121.5 (WxH)mm.
- 256K Colours.
- PAL and NTSC Auto.
- Response Time: 10/15 ms (Tr/Tf).
- Viewing angle: Left/Right: 70 degs, Up: 50 degs. Down 70 degs.
- SDI Standard: 3G-SDI (SMPTE 424M), HD-SDI (SMPTM 292M) SD-SDI (SMPTE 259M).
- SDI Video: 3G-1080p50/60 (4:2:2), HD-720p@50/60 & 1080i@50/60, 1080p25/30Hz, SD-NTSC/60Hz, PAL/50Hz.
- SDI Bandwidth: 2.97 Gbps & 2.975/1.001 Gbps.
- Controls: Full OSD via Menu, Up/Down, Power On/Off. On LED.
Technical Specifications
| Power Source: | Single connection 100-240V 50/60Hz 21 Watts. |
|---|---|
| Dimensions: | 480x 189.2 x 138.21. |
| Weight: | Unit: 4.3 Kgms, Carton: 5 Kgms. |
| Operating Conditions: | Operation: 0 ~ 50 °C. |
| Included Accessories: | Single UK AC Mains lead. |
| Optional Accessories: | Touch Screen, Glass Front. |

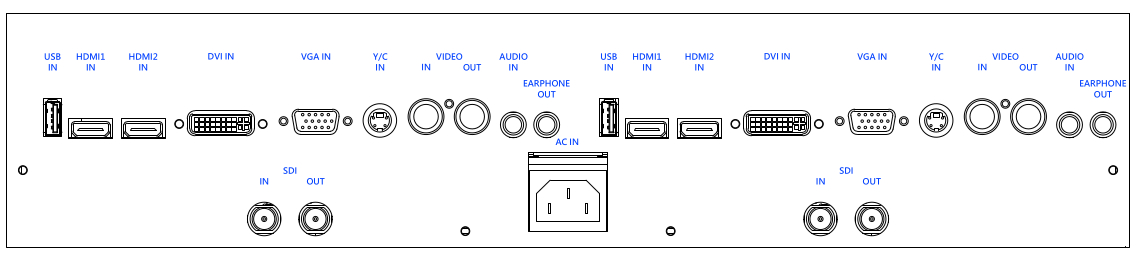

| Connections: | Each Monitor: Input: SDI In/Out: BNC sockets, HDMI x 2: Type A sockets. DVI: DVI-D socket, VGA: 15 pin Sub-D. Composite Video In/Out: BNC socket. S-Video (Y/C) In: 4 pin mini din socket. Audio In/Out: 3.5mm Jack sockets. USB for Media and Service use only. Power: Single IEC mains socket powering both monitors. |
| Please Note: | n/a |
| Other Information: | Other sizes available. |
Model Alternate Images:
Other Similar Models which may be of interest:
All information correct at time of going to press. Design and specification are subject to change without prior notice. E&EO
